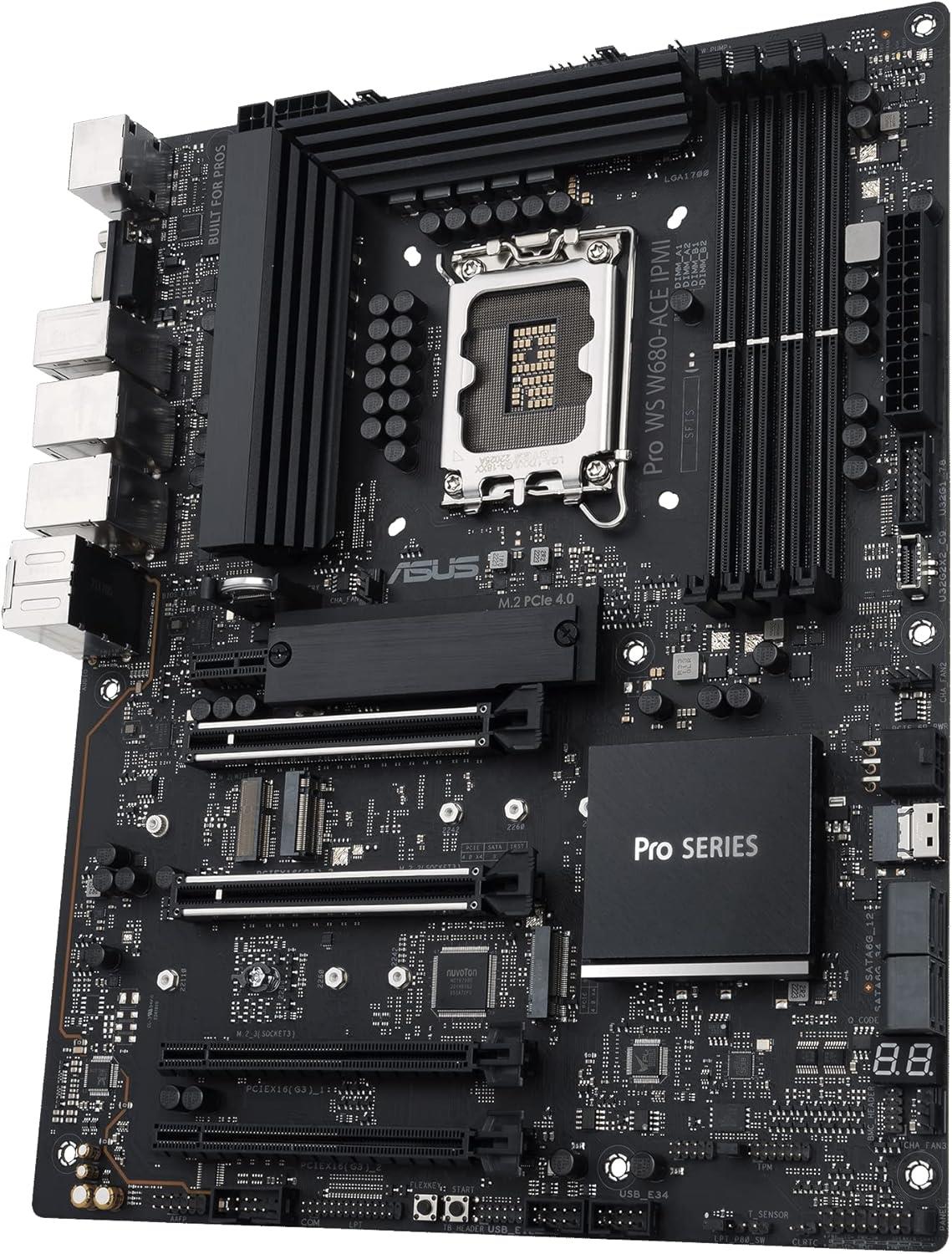

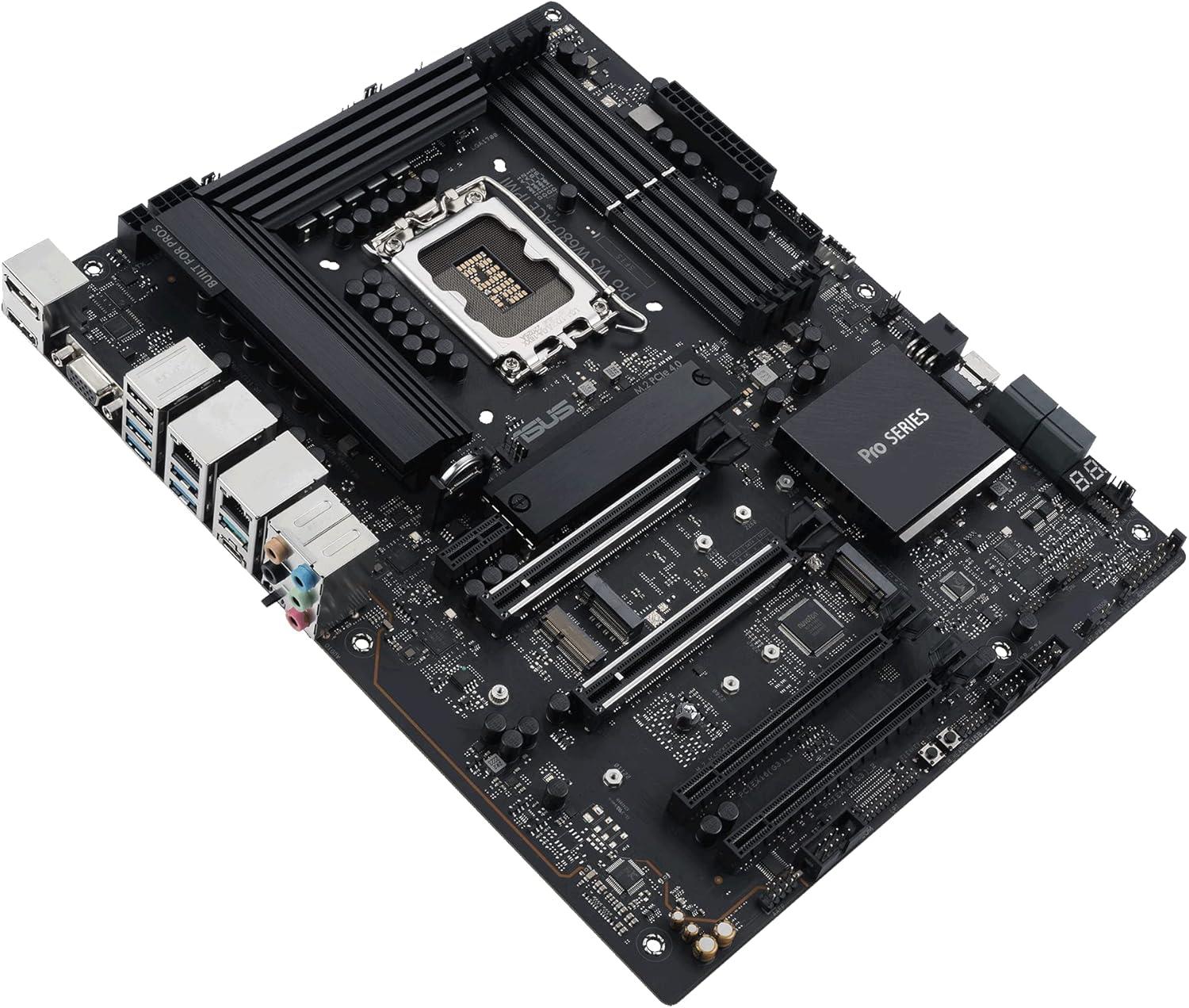

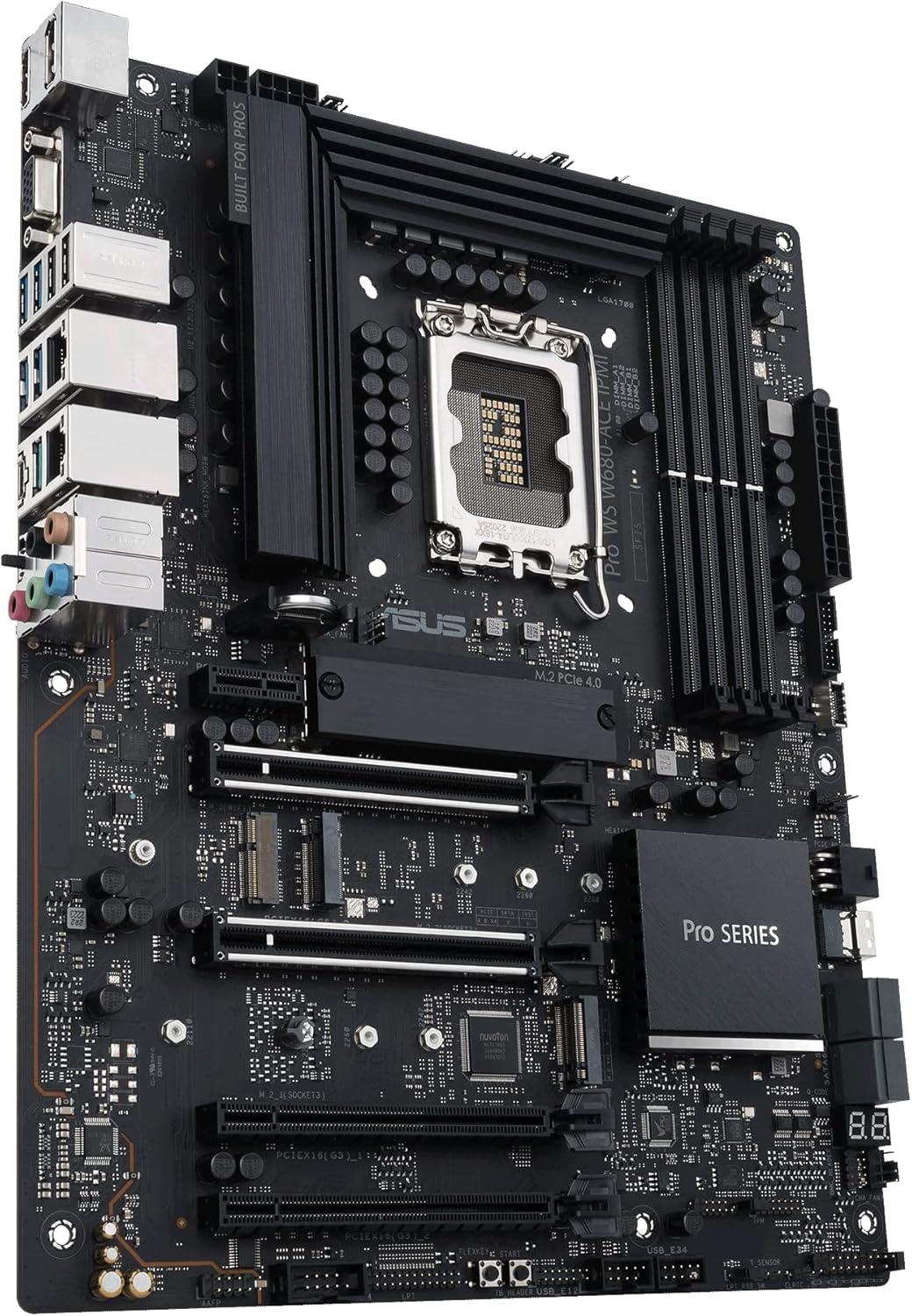

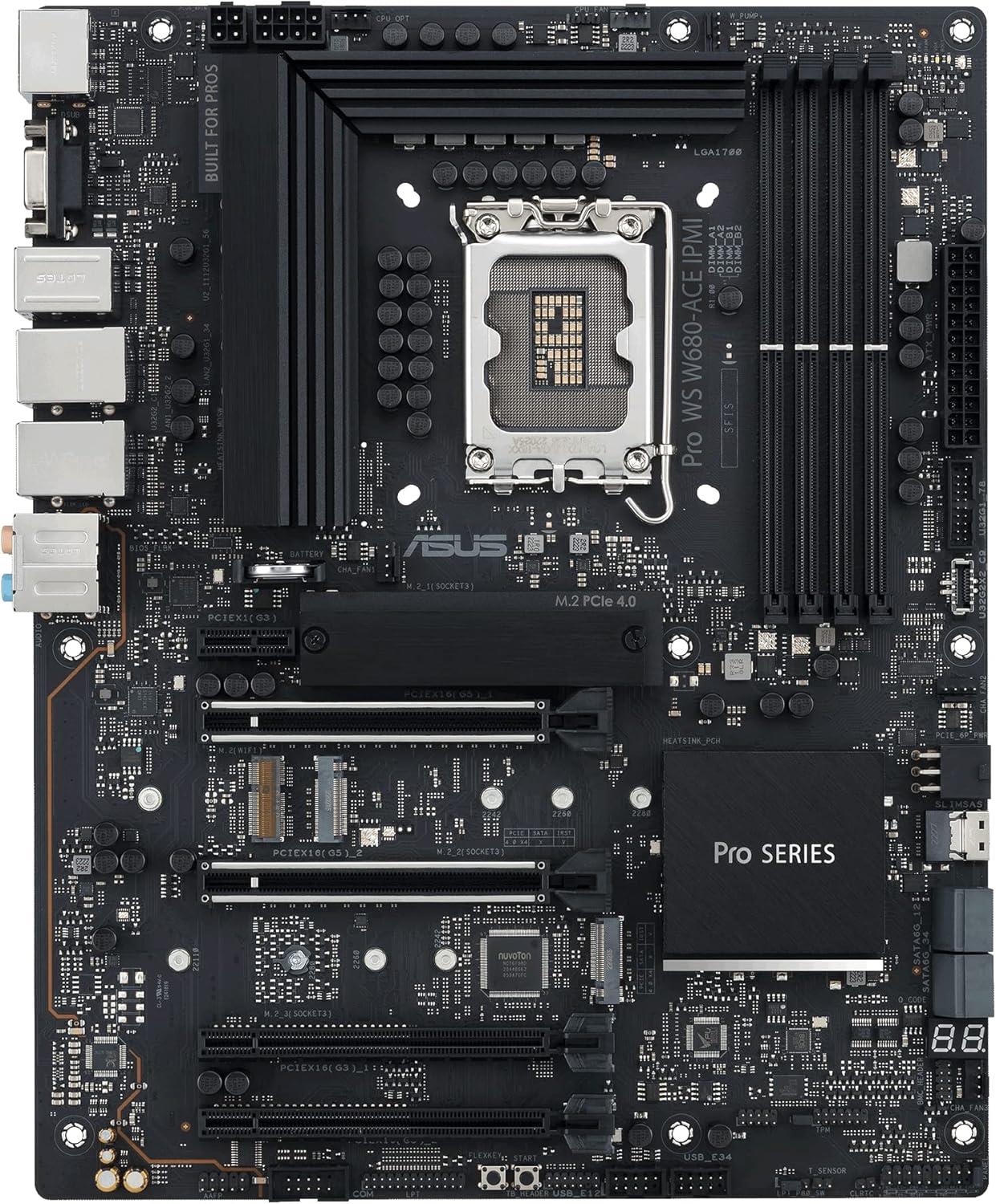

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX

Click To Enlarge

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX

Product SKU : EX200-052

£399.99
Save £499.01

Pro Refurbished
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core Processors
ATX Form Factor
90MB1DZ0-M0EAY0
12 Months Warranty
Free Next Business Day Delivery

Grade: Very Good Grading Guide

Brand: ASUS

Quantity

Only 1 left!

Product Description

Reasons to buy refurbished ASUS 90MB1DZ0-M0EAY0 :

Pro Refurbished
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core Processors
ATX Form Factor
90MB1DZ0-M0EAY0
12 Months Warranty
Free Next Business Day Delivery

What's Included-

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX

I/O Shield missing

Features-

ASUS Pro WS W680-ACE Intel LGA1700 ATX workstation motherboard,2x PCIe 5.0x16 slot,DDR5,ECC memory,2x2.5 Gb Lan,3xM.2 slots,SlimSAS,BMC header,THUNDERBOLT4 Header

Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: Dual PCIe 5.0 Safeslots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4
Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability

CPU	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core Processors
Chipset	Intel W680
Memory	4 x DIMM, Max. 128GB, DDR5 4800MHz Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs	1 x HDMI port 1 x DisplayPort 1 x VGA
PCI Slots	Intel® 13th & 12th Gen Processors - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode)v# - 1 x PCIe 3.0 x1 slot
Storage	Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® W680 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*
Networking	2 x Intel 2.5Gb Ethernet
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC

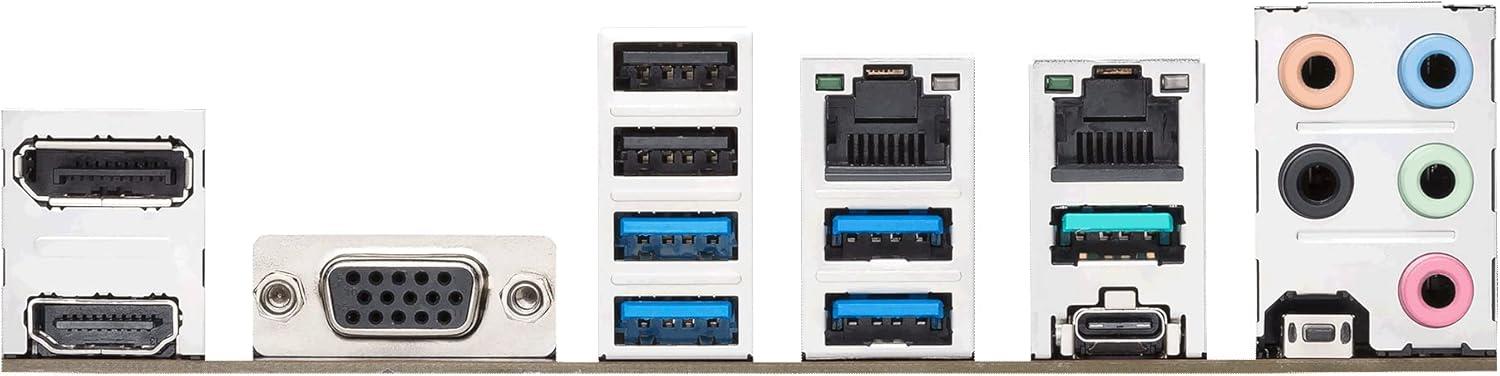

Connectivity	-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI® port -1 x VGA port -2 x Intel® 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button
Internal Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x Thunderbolt™ header
