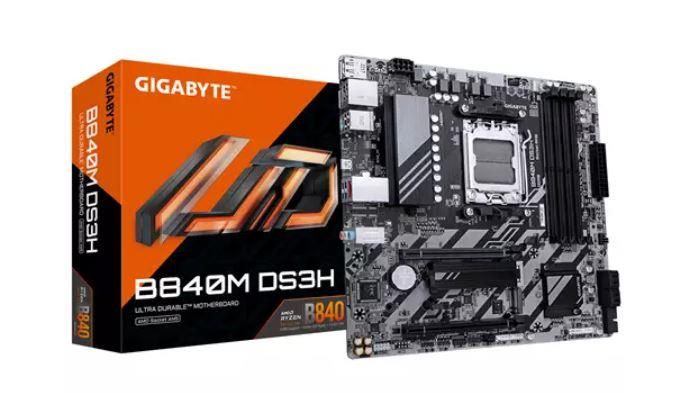

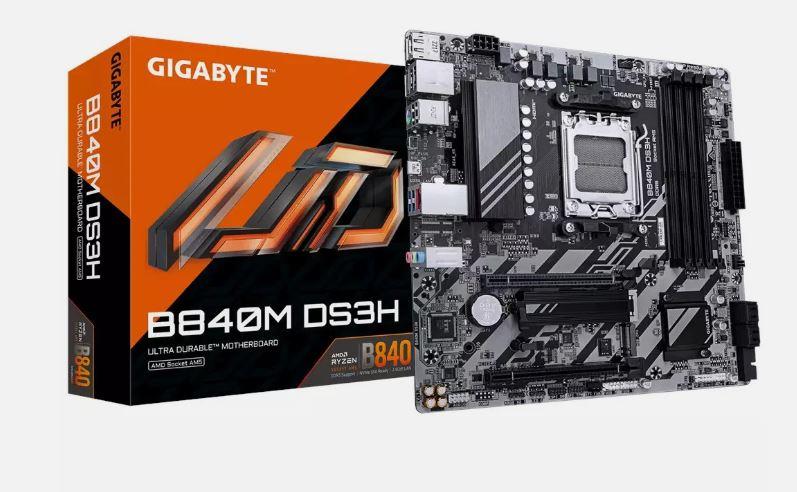

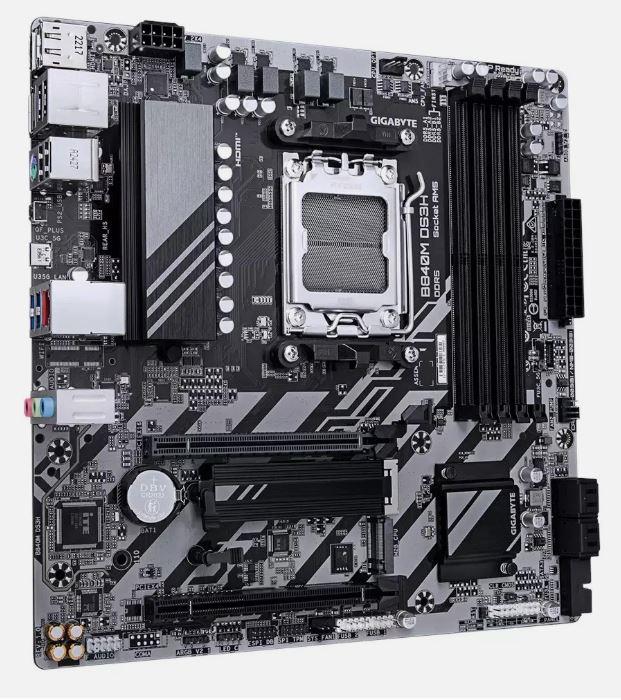

GIGABYTE B840M DS3H Motherboard - AM5 CPU DDR5 Gigabyte Lan
Product SKU : EX200-026- Pro Refurbished
- Form Factor: MicroATX
- Socket: AM5
- Multiple Monitor Support
- 12 Months Warranty
- Free Next Business Day Delivery
Grade:
Excellent
Grading Guide
Brand:
Product Description
Reasons to buy refurbished Gigabyte Gigabyte B840M DS3H :
|
What's Included-
- GIGABYTE B840M DS3H Motherboard - AM5 CPU DDR5 Gigabyte Lan
- 12 Months Warranty
- ** Missing i/O Sheild **
Features-
GIGABYTE B840M DS3H Motherboard - AMD Ryzen 9000 CPUs 8+2+2 Phases VRM up to 8200MHz DDR5 2xPCIe 4.0 M.2 2.5GbE LAN USB 3.2 Gen 1
GIGABYTE B840M DS3H Motherboard - AMD Ryzen 9000 CPUs 8+2+2 Phases VRM up to 8200MHz DDR5 2xPCIe 4.0 M.2 2.5GbE LAN USB 3.2 Gen 1 AMD Socket AM5 AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series Socket AM5 DDR5-SDRAM 256
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
Elevate yourputing experience with GIGABYTE's renowned motherboard series: AORUS AERO and GIGABYTE. Featuring innovative designs and advanced features these boards offer exceptional performance and reliability. Whether you're a gamer content creator or professional our series cater to your needs ensuring upromising quality and cutting-edge
| Feature | Value |
|---|---|
| Brand | Gigabyte |
| Manufacturer Product Type | AMD Motherboards |
| Manufacturer Product Type | Gigabyte Motherboards |
| Product Type | Motherboards |
| Product Family | Gigabyte AORUS |
| Collection Model | Gigabyte B840M DS3H Motherboard - AMD Ryzen 9000 CPUs 8+2+2 Phases VRM up to 8200MHz DDR5 2xPCIe |
| Battery Type | CR2032 |
| Video Inputs | DisplayPort |
| Motherboard chipset | AMD B840 |
| MPN | B840M DS3H |
| VGA (D-Sub) ports quantity | 0 |
| Power source type | ATX |
| DirectX version | 12.0 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Product colour | Dark brown |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN | Yes |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Number of storage drives supported | 6 |
| HDMI ports quantity | 1 |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Component for | PC |
| Processor socket | Socket AM5 |
| Motherboard chipset family | AMD |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2580 |
| Number of M.2 (M) slots | 2 |
| Products per shipping (inner) case | 1 pc(s) |
| Package weight | 1.13 kg |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
| Package depth | 265 mm |
| Package width | 265 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.07 g |
| Number of RGB LED pin headers | 3 |
| Package height | 54 mm |
| RGB LED pin header | Yes |
| Battery weight | 3 g |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| Height | 35 mm |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Number of water pump connectors | 2 |
| Parallel processing technology support | Not supported |
| System management BIOS (SMBIOS) version | 2.7 |
| TPM connector | Yes |
| Warranty period | 3 year(s) |
| Batteries Included | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Headphone outputs | 1 |
| Weight | 1.05 kg |
| Memory channels | Dual-channel |
| Screws included | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of battery cells | 1 |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 2 |
| PC health monitoring | Fan Temperature Voltage Water cooling |
| Supported memory clock speeds | 8200800079507900780076007400720070006800666666006400620060005600520048004400 MHz |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ECC ompatibility | Non-ECC |
| Clear CMOS jumper | Yes |
| Wi-Fi | No |
| Microphone in | Yes |
| ACPI version | 5.0 |
| Line-in | Yes |
| Cooling type | Passive |
| BIOS memory size | 256 Mbit |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| LAN controller | Realtek RTL8125 |
| BIOS type | UEFI AMI |
| Memory slots type | DIMM |
| RAID levels | 0 1 10 |
| Supported storage drive interfaces | M.2 PCI Express 4.0 SATA III |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory | 256 GB |
| PS/2 ports quantity | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| RAID support | Yes |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum Resolution | 4096 x 2160 Pixels |
| Compatible processor series | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
B840M DS3H Motherboard - AMD Ryzen 9000 CPUs 8+2+2 Phases VRM up to 8200MHz DDR5 2xPCIe 4.0 M.2 2.5GbE LAN USB 3.2 Gen 1
B840M DS3H Motherboard - AMD Ryzen 9000 CPUs 8+2+2 Phases VRM up to 8200MHz DDR5 2xPCIe 4.0 M.2 2.5GbE LAN USB 3.2 Gen 1
