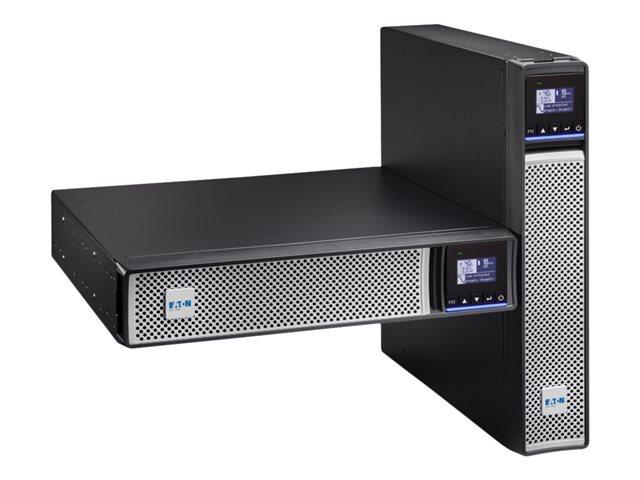

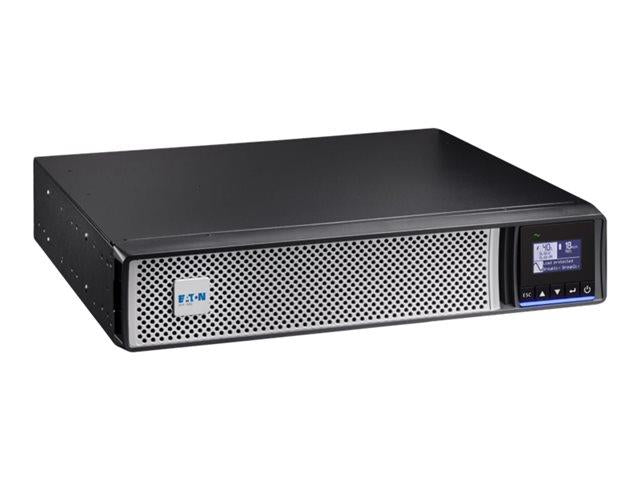

Eaton 5PX3000IRTNG2BS Uninterruptible Power Supply UPS Rack Type 2U 10 Outlets

Ease of Operation
The innovative graphical LCD display makes configuration of the 5PX3000IRTNG2BS easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with the included network management card. Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.

Efficiency
The 5PX3000IRTNG2BS delivers 11% more power to connected servers than other UPS thanks to its unity power factor capability. It is Energy Star 2.0 certified for maximum efficiency across the full operating range. Energy is metered for each individual outlet group and is visible directly on the display and through Eaton’s Intelligent Power Manager.

Secure and Resilient
Prioritise connected devices for maximum uptime of essential services. Easily manage power switching and disaster recovery with load segment control. Advanced virtualisation capabilities make the 5PX1000IRTNG2BS perfect for Enterprise and Edge IT applications. This UPS further protects your content with dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and offers connection to Eaton’s Cyber Secured Monitoring cloud.

Features

• Output power capacity: 3 kVA
• Output power: 3000 W
• Waveform: Sine
• Input operation voltage (min): 150 V
• Input operation voltage (max): 294 V
• Input frequency: 47/70 Hz
• Output operation voltage (min): 200 V
• Output operation voltage (max): 240 V
• Automatic Voltage Regulation (AVR): Yes
• Number of input phases: 1
• Number of output phases: 1
• Power factor: 1
• Output power factor: 1
• Noise level: 40 dB
• Power protection features: Overdischarge

Ports & interfaces

• AC outlet types: C13 coupler, C19 coupler
• Power plug: C20 coupler
• AC outlets quantity: 10 AC outlet(s)
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB port type: USB Type-B
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1

Battery

• Battery technology: Sealed Lead Acid (VRLA)
• Battery capacity: 9 Ah
• Battery voltage: 12 V
• Number of batteries supported: 6
• Automatic battery test: Yes

Design

• Form factor: Rackmount/Tower
• Product colour: Black, Silver
• Display type: LCD
• Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC

Operational conditions

• Operating altitude: 0 - 3000 m

Technical details

• Sustainability compliance: Yes
• Sustainability certificates: CE, ENERGY STAR, REACH, RoHS
